Department of Defense - Defense Science & Technologies Group (DSTG)

Verified Switchboards was contracted to design and manufacture a bespoke assembly which was deemed to be not possible by other manufacturers

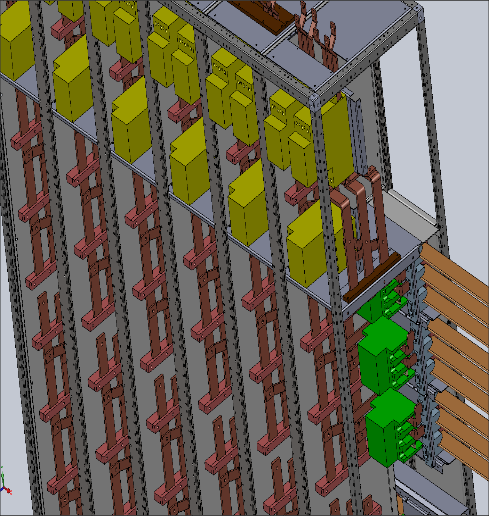

Complete 3D Solid Modelling for proof of concept

Power Buses included:

• 8 x 630A 415VAC Main Bus Systems and Bus Ties

• 4 x 500A 1000VDC Main Bus Systems and Bus Ties

Switchgear Included :

• 56 x 300A 415VAC Contactors

• 21 x 300A 415VAC Motorised Contactors

• 24 x 250A 1000VDC Contactors

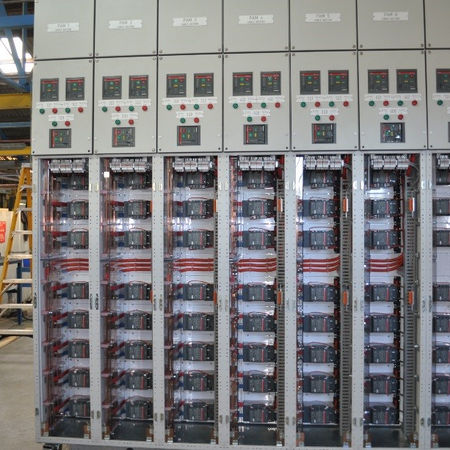

CUBIC Modular Switchboard System used with minimal dimensions.
